1064nm Integrative Fiber AOM Series

1064nm Integrative Fiber AOM Series Featured Image

short description:

Integrated drivers and devices are integrated products with higher integration degrees, smaller volumes, and high-frequency stability.

Send email to us

Product Detail

Product Tags

Characteristics of 1064nm Integrative Fiber AOM Series

Integrated package
Low insertion loss
Low power consumption
High-temperature stability and reliability

Applications of 1064nm Integrative Fiber AOM Series

Q-switched fiber laser
Laser Doppler coherent application
Ultra-fast laser frequency reduction menu
Linear frequency modulation

Ordering Information of 1064nm Integrative Fiber AOM Series

This indicator is a typical optical wavelength indicator, and other wavelengths and frequencies can be selected.

parameter	Unit	SGTF200-1064-1PFH	SGTF300-1064-1PFH(H)	SGTF400-1064-1PFH(H)
Wavelength	nm	1030-1080
Shift frequency	MHz	200	300	400
3dB frequency shift bandwidth	MHz	＞40	＞60	＞80
Insertion loss	dB	＜3
Rise time	ns	＜12	＜8	＜6
Fiber type	-	PM980
On-off extinction ratio	dB	≥50
Polarization extinction ratio (PM device)	dB	≥20
Optical power	W	≤1
Driving power	W	≤1.5
Fiber length	m	≥1
Optical fiber connector	-	FC/APC
RF input joint	-	SMA母头
Input impedance	Ω	50
Package	-	FH

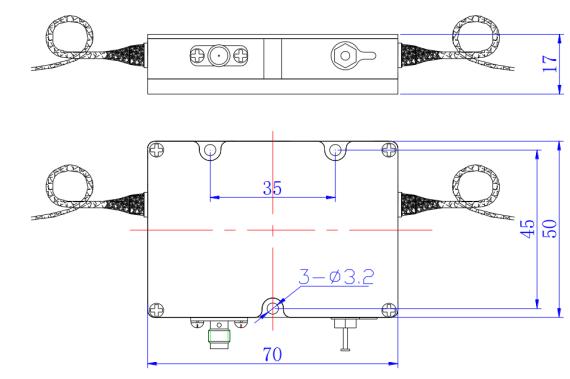

Package Specification:

Package FC

1064 nm integrative fiber AOM series Parameter Unit "D" means digital modulation, "A" means analog modulation<br />
SGTF80-1064-1TP-2A<br />
SGTF80-1064-1TP-2D SGTF150-1064-1TP-2A<br />
SGTF150-1064-1TP-2D SGTF200-1064-1TP-2A<br />
SGTF200-1064-1TP-2D<br />
Specifications of modulation input interface<br />
Modulation mode - Digital modulation (high level 3.3-5V; low level 0-0.2V@1k Ω)<br />
Analog modulation (A1: 0-1V@50 Ω）<br />
Interface - SMA<br />
Complete machine specification<br />
Wavelength nm 1030-1080<br />
Shift frequency MHz 80 150 200<br />
3dB frequency shift bandwidth MHz >15 >30 >40</p>
<p>Insertion loss dB <2.5 <3.5 <4.5</p>
<p>Rise time ns <40 <25 <12</p>
<p>Fiber type - PM980(PM) HI1060(SM)<br />
On - off extinction ratio dB ≥50<br />
Polarization extinction ratio (PM device) dB ≥20<br />
Polarization dependent loss<br />
(SM device) dB <0.5<br />
Optical power W ≤0.5<br />
Fiber length m ≥1<br />
Optical fiber connector - FC/APC<br />
Maximum power consumption W 3@Duty cycle1%<br />
Working voltage Vdc 12±0.5<br />
Maximum current A 0.8<br />
Power interface - Through core capacitance (core wire is connected to positive, solder lug is connected to negative)
